項目中經常用到echarts，不做封裝直接拿來使用也行，但不可避免要寫很多重復的配置代碼，封裝稍不注意又會過度封裝，丟失了擴展性和可讀性。始終沒有找到一個好的實踐，偶然看到一篇文章，給了靈感。找到了一個目前認為用起來很舒服的封裝。
思路
- 結合項目需求，針對不同類型的圖表，配置基礎的默認通用配置，例如x/y，label，圖例等的樣式
- 創建圖表組件實例（不要使用
id,容易重復，還需要操作dom，直接用ref獲取當前組件的el來創建圖表），提供type(圖表類型)，和options(圖表配置)兩個必要屬性 - 根據傳入
type，加載默認的圖表配置 - 深度監聽傳入的
options，變化時更新覆蓋默認配置，更新圖表 - 提供事件支持，支持
echart事件按需綁定交互
注意要確保所有傳入圖表組件的options數組都是
shallowReactive類型，避免數組量過大，深度響應式導致性能問題
目錄結構
├─v-charts │ │ index.ts // 導出類型定義以及圖表組件方便使用 │ │ type.d.ts // 各種圖表的類型定義 │ │ useCharts.ts // 圖表hooks │ │ v-charts.vue // echarts圖表組件 │ │ │ └─options // 圖表配置文件 │ bar.ts │ gauge.ts │ pie.ts
登錄后復制
組件代碼
v-charts.vue
<template> <div ref="chartRef" /> </template> <script setup> import { PropType } from "vue"; import * as echarts from "echarts/core"; import { useCharts, ChartType, ChartsEvents } from "./useCharts"; /** * echarts事件類型 * 截至目前，vue3類型聲明參數必須是以下內容之一，暫不支持外部引入類型參數 * 1. 類型字面量 * 2. 在同一文件中的接口或類型字面量的引用 * // 文檔中有說明：https://cn.vuejs.org/api/sfc-script-setup.html#typescript-only-features */ interface EventEmitsType { <T extends ChartsEvents.EventType>(e: `${T}`, event: ChartsEvents.Events[Uncapitalize<T>]): void; } defineOptions({ name: "VCharts" }); const props = defineProps({ type: { type: String as PropType<ChartType>, default: "bar" }, options: { type: Object as PropType<echarts.EChartsCoreOption>, default: () => ({}) } }); // 定義事件，提供ts支持，在組件使用時可獲得友好提示 defineEmits<EventEmitsType>(); const { type, options } = toRefs(props); const chartRef = shallowRef(); const { charts, setOptions, initChart } = useCharts({ type, el: chartRef }); onMounted(async () => { await initChart(); setOptions(options.value); }); watch( options, () => { setOptions(options.value); }, { deep: true } ); defineExpose({ $charts: charts }); </script> <style scoped> .v-charts { width: 100%; height: 100%; min-height: 200px; } </style>
登錄后復制
useCharts.ts
import { ChartType } from "./type"; import * as echarts from "echarts/core"; import { ShallowRef, Ref } from "vue"; import { TitleComponent, LegendComponent, TooltipComponent, GridComponent, DatasetComponent, TransformComponent } from "echarts/components"; import { BarChart, LineChart, PieChart, GaugeChart } from "echarts/charts"; import { LabelLayout, UniversalTransition } from "echarts/features"; import { CanvasRenderer } from "echarts/renderers"; const optionsModules = import.meta.glob<{ default: echarts.EChartsCoreOption }>("./options/**.ts"); interface ChartHookOption { type?: Ref<ChartType>; el: ShallowRef<HTMLElement>; } /** * 視口變化時echart圖表自適應調整 */ class ChartsResize { #charts = new Set<echarts.ECharts>(); // 緩存已經創建的圖表實例 #timeId = null; constructor() { window.addEventListener("resize", this.handleResize.bind(this)); // 視口變化時調整圖表 } getCharts() { return [...this.#charts]; } handleResize() { clearTimeout(this.#timeId); this.#timeId = setTimeout(() => { this.#charts.forEach(chart => { chart.resize(); }); }, 500); } add(chart: echarts.ECharts) { this.#charts.add(chart); } remove(chart: echarts.ECharts) { this.#charts.delete(chart); } removeListener() { window.removeEventListener("resize", this.handleResize); } } export const chartsResize = new ChartsResize(); export const useCharts = ({ type, el }: ChartHookOption) => { echarts.use([ BarChart, LineChart, BarChart, PieChart, GaugeChart, TitleComponent, LegendComponent, TooltipComponent, GridComponent, DatasetComponent, TransformComponent, LabelLayout, UniversalTransition, CanvasRenderer ]); const charts = shallowRef<echarts.ECharts>(); let options!: echarts.EChartsCoreOption; const getOptions = async () => { const moduleKey = `./options/${type.value}.ts`; const { default: defaultOption } = await optionsModules[moduleKey](); return defaultOption; }; const setOptions = (opt: echarts.EChartsCoreOption) => { charts.value.setOption(opt); }; const initChart = async () => { charts.value = echarts.init(el.value); options = await getOptions(); charts.value.setOption(options); chartsResize.add(charts.value); // 將圖表實例添加到緩存中 initEvent(); // 添加事件支持 }; /** * 初始化事件,按需綁定事件 */ const attrs = useAttrs(); const initEvent = () => { Object.keys(attrs).forEach(attrKey => { if (/^on/.test(attrKey)) { const cb = attrs[attrKey]; attrKey = attrKey.replace(/^on(Chart)?/, ""); attrKey = `${attrKey[0]}${attrKey.substring(1)}`; typeof cb === "function" && charts.value?.on(attrKey, cb as () => void); } }); }; onBeforeUnmount(() => { chartsResize.remove(charts.value); // 移除緩存 }); return { charts, setOptions, initChart, initEvent }; }; export const chartsOptions = <T extends echarts.EChartsCoreOption>(option: T) => shallowReactive<T>(option); export * from "./type.d";
登錄后復制
type.d.ts
/* * @Description: * @Version: 2.0 * @Autor: GC * @Date: 2022-03-02 10:21:33 * @LastEditors: GC * @LastEditTime: 2022-06-02 17:45:48 */ // import * as echarts from 'echarts/core'; import * as echarts from 'echarts' import { XAXisComponentOption, YAXisComponentOption } from 'echarts'; import { ECElementEvent, SelectChangedPayload, HighlightPayload, } from 'echarts/types/src/util/types' import { TitleComponentOption, TooltipComponentOption, GridComponentOption, DatasetComponentOption, AriaComponentOption, AxisPointerComponentOption, LegendComponentOption, } from 'echarts/components';// 組件 import { // 系列類型的定義后綴都為 SeriesOption BarSeriesOption, LineSeriesOption, PieSeriesOption, FunnelSeriesOption, GaugeSeriesOption } from 'echarts/charts'; type Options = LineECOption | BarECOption | PieECOption | FunnelOption type BaseOptionType = XAXisComponentOption | YAXisComponentOption | TitleComponentOption | TooltipComponentOption | LegendComponentOption | GridComponentOption type BaseOption = echarts.ComposeOption<BaseOptionType> type LineECOption = echarts.ComposeOption<LineSeriesOption | BaseOptionType> type BarECOption = echarts.ComposeOption<BarSeriesOption | BaseOptionType> type PieECOption = echarts.ComposeOption<PieSeriesOption | BaseOptionType> type FunnelOption = echarts.ComposeOption<FunnelSeriesOption | BaseOptionType> type GaugeECOption = echarts.ComposeOption<GaugeSeriesOption | GridComponentOption> type EChartsOption = echarts.EChartsOption; type ChartType = 'bar' | 'line' | 'pie' | 'gauge' // echarts事件 namespace ChartsEvents { // 鼠標事件類型 type MouseEventType = 'click' | 'dblclick' | 'mousedown' | 'mousemove' | 'mouseup' | 'mouseover' | 'mouseout' | 'globalout' | 'contextmenu' // 鼠標事件類型 type MouseEvents = { [key in Exclude<MouseEventType,'globalout'|'contextmenu'> as `chart${Capitalize<key>}`] :ECElementEvent } // 其他的事件類型極參數 interface Events extends MouseEvents { globalout:ECElementEvent, contextmenu:ECElementEvent, selectchanged: SelectChangedPayload; highlight: HighlightPayload; legendselected: { // 圖例選中后的事件 type: 'legendselected', // 選中的圖例名稱 name: string // 所有圖例的選中狀態表 selected: { [name: string]: boolean } }; // ... 其他類型的事件在這里定義 } // echarts所有的事件類型 type EventType = keyof Events } export { BaseOption, ChartType, LineECOption, BarECOption, Options, PieECOption, FunnelOption, GaugeECOption, EChartsOption, ChartsEvents }
登錄后復制
options/bar.ts
import { BarECOption } from "../type"; const options: BarECOption = { legend: {}, tooltip: {}, xAxis: { type: "category", axisLine: { lineStyle: { // type: "dashed", color: "#C8D0D7" } }, axisTick: { show: false }, axisLabel: { color: "#7D8292" } }, yAxis: { type: "value", alignTicks: true, splitLine: { show: true, lineStyle: { color: "#C8D0D7", type: "dashed" } }, axisLine: { lineStyle: { color: "#7D8292" } } }, grid: { left: 60, bottom: "8%", top: "20%" }, series: [ { type: "bar", barWidth: 20, itemStyle: { color: { type: "linear", x: 0, x2: 0, y: 0, y2: 1, colorStops: [ { offset: 0, color: "#62A5FF" // 0% 處的顏色 }, { offset: 1, color: "#3365FF" // 100% 處的顏色 } ] } } // label: { // show: true, // position: "top" // } } ] }; export default options;
登錄后復制
項目中使用
index.vue
<template> <div> <section> <div class="device-statistics chart-box"> <div>累計設備接入統計</div> <v-charts type="bar" :options="statisDeviceByUserObjectOpts" @selectchanged="selectchanged" @chart-click="handleChartClick" /> </div> <div class="coordinate-statistics chart-box"> <div>坐標數據接入統計</div> <v-charts type="bar" :options="statisCoordAccess" /> </div> </section> </div> </template> <script setup> import { useStatisDeviceByUserObject, } from "./hooks"; // 設備分類統計 const { options: statisDeviceByUserObjectOpts,selectchanged,handleChartClick } = useStatisDeviceByUserObject(); </script>
登錄后復制
/hooks/useStatisDeviceByUserObject.ts
export const useStatisDeviceByUserObject = () => { // 使用chartsOptions確保所有傳入v-charts組件的options數據都是## shallowReactive淺層作用形式，避免大量數據導致性能問題 const options = chartsOptions<BarECOption>({ yAxis: {}, xAxis: {}, series: [] }); const init = async () => { const xData = []; const sData = []; const dicts = useHashMapDics<["dev_user_object"]>(["dev_user_object"]); const data = await statisDeviceByUserObject(); dicts.dictionaryMap.dev_user_object.forEach(({ label, value }) => { if (value === "6") return; // 排除其他 xData.push(label); const temp = data.find(({ name }) => name === value); sData.push(temp?.qty || 0); // 給options賦值時要注意options是淺層響應式 options.xAxis = { data: xData }; options.series = [{ ...options.series[0], data: sData }]; }); }; // 事件 const selectchanged = (params: ChartsEvents.Events["selectchanged"]) => { console.log(params, "選中圖例了"); }; const handleChartClick = (params: ChartsEvents.Events["chartClick"]) => { console.log(params, "點擊了圖表"); }; onMounted(() => { init(); }); return { options， selectchanged, handleChartClick }; };
登錄后復制

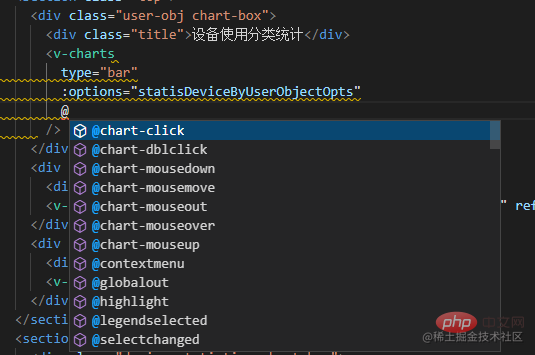

使用時輸入@可以看到組件支持的所有事件：
-
推薦學習：《vue.js視頻教程》
